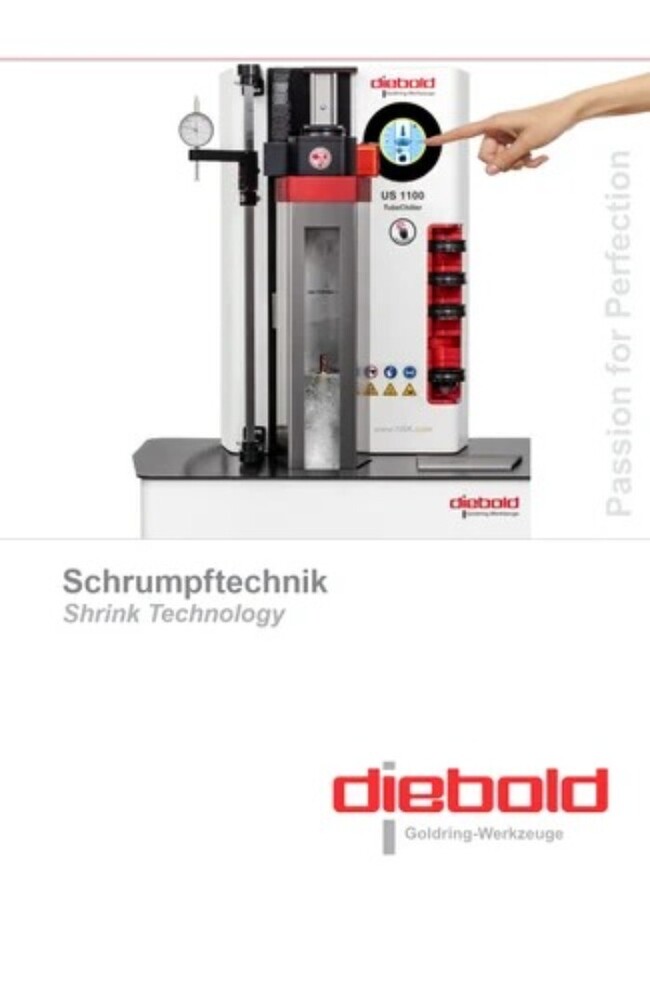

Shrink Fit Machine

Shrink Fit Machine Specification

Product Type
Shrink Fit Machine

General Use
Tool Holder Shrinking for CNC

Material
Mild Steel Body

Type
Automatic Shrink Fit

Capacity
1 Tool Holder at a Time

Weight (kg)
170 kg

Computerized
No

Automatic
Yes

PLC Control
Yes

Bar Feeder
Not Included

Power Source
Electric

Power Consumption
6 kW

Rigidity
High

Voltage
220V AC

Motor
Induction Motor

Table Size
400 mm x 300 mm

Axial Choice
Single

Dimension (L*W*H)
950 mm x 650 mm x 1200 mm

Feature
Rapid Heating & Cooling, Precision Clamping

Color
Blue & Grey

Clamping Range
3 mm to 32 mm tool holders

Insulation Class
Class F

Control Panel
Touch Key Operation

Cooling System
Integrated Forced Air Cooling

Cooling Time
Approx. 30 Seconds

Power Supply Frequency
50 Hz

Ambient Temperature Range
5C - 45C

Cycle Time
8-10 Seconds (Heating)

Compatible Tool Holder Types
HSK, BT, SK, ISO, CAT

Safety Features
Overheat Protection, Emergency Stop

Application
Precision Machining, Tool Room, CNC Workshop

Heating Method
Induction Heating

Display Type
Digital Display Panel

Shrink Fit Machine Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Delivery Time
7 Days

Main Domestic Market
All India

About Shrink Fit Machine

Shrink Fit Machine Product Description

Our Shrink Fit Machine is a high-precision tool clamping system designed for CNC machining applications. The machine uses advanced induction heating technology to expand the tool holder bore, allowing easy insertion and removal of cutting tools. After cooling, the holder securely shrinks around the tool, ensuring maximum gripping force and excellent concentricity.

This system provides superior run-out accuracy, improved machining performance, and longer tool life. It is widely used in CNC machining centers, tool rooms, automotive, aerospace, and die & mold industries.

Precision Shrink Fitting for Modern CNC Workshops

Engineered for reliability, this shrink fit machine supports precision tool holder changes with minimal downtime. Its induction heating rapidly expands holders for secure tool insertion or removal, while integrated forced air cooling swiftly returns tools to operational temperature. Serving tool rooms and CNC workshops, the machine enhances productivity and tool longevity.

Advanced Controls and Enhanced Safety Features

The machine features a digital display panel and touch key operation, making the process straightforward and user-friendly. Safety is prioritized with integrated overheat protection and an emergency stop function, ensuring the operator's well-being under all operating conditions. Its automatic function delivers consistent results with every cycle.

Broad Compatibility and Robust Construction

Compatible with various industry-standard tool holder types (HSK, BT, SK, ISO, CAT), the machine handles a clamping range from 3 mm to 32 mm. Constructed with a mild steel body for durability, it accommodates up to one tool holder per cycle, offering stable performance and long-term structural integrity.

FAQ's of Shrink Fit Machine:

Q: How does the shrink fit machine operate during the tool changing process?

A: The machine uses induction heating to rapidly expand the tool holder, allowing easy insertion or removal of the cutting tool. After heating, forced air cooling quickly brings the holder back to ambient temperature, ensuring a secure and precise grip around the tool.

Q: What types and sizes of tool holders are compatible with this machine?

A: This shrink fit machine is compatible with HSK, BT, SK, ISO, and CAT tool holders within a clamping range of 3 mm to 32 mm, making it suitable for a wide variety of CNC tools commonly used in precision machining applications.

Q: When is it recommended to use this shrink fit machine in a workshop?

A: The machine is ideal for use in tool rooms and CNC workshops whenever efficient, precise, and rapid tool holder changes are required, such as during high-mix, low-volume production or where tool accuracy is critical.

Q: How does the machine ensure user safety during operation?

A: Safety is ensured through features like overheat protection, an emergency stop button, and a digitally controlled process. These safeguards help protect both the user and the equipment during high-temperature operations.

Q: What are the main benefits of using this shrink fit machine for tool holder clamping?

A: Key benefits include rapid heating and cooling for fast tool exchange, high precision clamping, compatibility with multiple tool holder standards, enhanced operator safety, and robust construction for long-term, reliable use.

Q: Where can this shrink fit machine be installed and operated?

A: It is suited for installation in precision machining environments, tool rooms, and CNC workshops that require automated, high-quality tool holder shrinking processes. Its compact footprint makes it practical for various industrial settings in India and globally.
