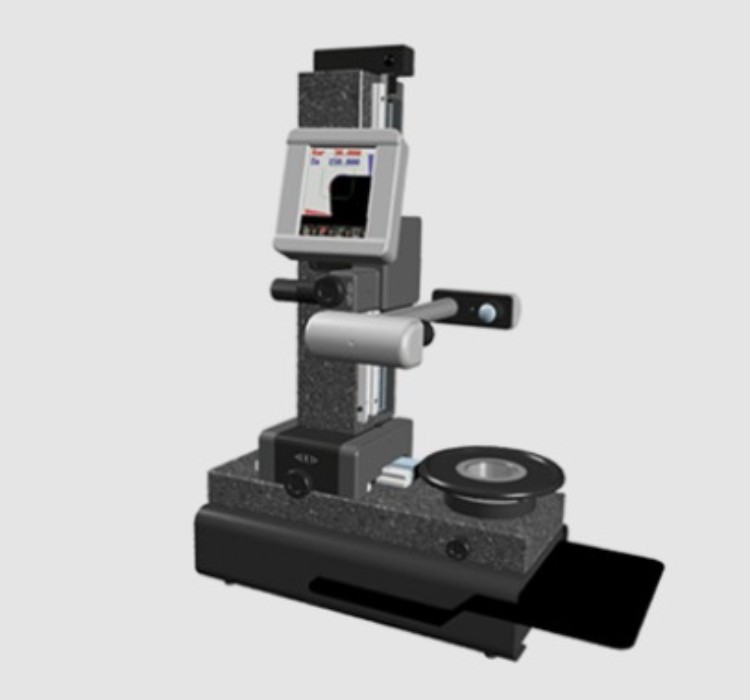

Tool Presetter

Tool Presetter Specification

Cooling System
Air Blow Type

Machine Type
Automatic Tool Presetter Machine

Accuracy
0.001 mm mg

Lubricating System
Manual Lubrication

Voltage
220V AC Teraampere (TA)

Model No
as per your requirment

Noise Level
70db db

Plastic Processed
no

Operating Temperature
10 C Planck temperature ()

Frequency
50 Hz Kilohertz ( KHZ )

Motor Power
0.25 HP Decibel-milliwatt (dBm)

Drive
Electric Drive

Frame Type
Vertical Frame Type Rigid Frame Structure Heavy Duty Steel Frame Cast Iron Frame Floor Mounted Frame Compact Bench Type Frame

Features
High Precision Measurement Accurate Tool Length & Diameter Checking Easy Operation Digital Display System Robust & Durable Construction Fast Tool Setting Reduces Machine Downtime User Friendly Interface High Repeatability Low Maintenance Compact Design Suitable for CNC/VMC/HMC Machines Contact & Non-Contact Measuring Options High Stability and Reliability

WorkingSpeed
100

Country Of Origin
India

Power Rating
220V AC / 50 Hz

Production Capacity
50 100 Tools/Hour Kg

Control System
Manual

Connectivity Options
USB & RS232

Product Type
Other

Technology
CNC

Power Source
Electricity

Operating Type
Manual

Power
110 Volt (v)

Pressure
Air Pressure: 4 6 Bar kgf/m2

Surface Treatment
Painted

Dimension (L*W*H)
600 Meter (m)

Weight (kg)
500 Long Ton

Color
black

Warranty
1 year

Usage & Applications
CNC Machine tool setting

Tool Presetter Trade Information

Minimum Order Quantity
10 Kilograms

Delivery Time
4 Week

About Tool Presetter

Tool Presetter Description (Trade India Style)

Tool Presetter is a precision measuring device used for accurate tool setting and measurement in CNC machines. It helps in reducing machine downtime, improving machining accuracy, and increasing production efficiency. These presetters are manufactured using high-quality steel/aluminum material and are widely used in industrial and machining applications. Available in manual, automatic, contact, and non-contact types with high precision measurement systems.

Common Specifications:

Application: Industrial / CNC Machine
Material: Steel / Aluminum / Cast Iron
Accuracy: 0.01 mm to 0.001 mm
Power Supply: 220V
Feature: High Precision, Easy Operation, Durable Design
Usage: Tool Length & Diameter Measurement
Automation Grade: Manual / Automatic
Measuring Range: 0400 mm

Common Dimensions:

400 300 600 mm
1000 500 1500 mm

Weight Range:

Approx. 20 Kg to 50 Kg depending on model and capacity.

High Precision & Accurate Measurement

Experience industry-leading accuracy with measurements up to 0.001 mm. The digital display ensures each tool setting is precise, supporting both length and diameter checking for various CNC machine requirements. This high precision reduces human error and maximizes efficiency, making it indispensable for high-end machining applications.

Efficient and User-Friendly Operation

Designed with both operators and productivity in mind, this tool presetter features an intuitive interface, fast tool setting, and digital display. Its manual control system, coupled with contact and non-contact measuring options, simplifies the process, lowers the learning curve, and results in minimized machine downtime.

Durable Construction & Adaptable Design

Crafted with a heavy-duty steel or cast iron frame and painted for surface protection, the tool presetter is built for stability and long-term use. The compact bench type and floor-mounted options fit seamlessly into a variety of workshop settings, supporting both manual and automatic tool setting tasks for modern machining environments.

FAQ's of Tool Presetter:

Q: How does the tool presetter improve CNC machine tool setting efficiency?

A: The tool presetter provides accurate and fast tool measurement, significantly reducing machine downtime during tool changes. This ensures that CNC machines operate at peak efficiency, enhancing overall productivity.

Q: What is the measurement accuracy of this tool presetter and why is it important?

A: The presetter offers an impressive accuracy of 0.001 mm, which is crucial for maintaining tight machining tolerances. Accurate measurement ensures high-quality machining, reduces errors, and improves repeatability in tool setting.

Q: What types of machines is this tool presetter suitable for?

A: It is compatible with CNC, VMC, and HMC machines, offering adaptable performance for a wide range of modern machining environments that require precise and reliable tool setting.

Q: Where should the tool presetter be installed for optimal use?

A: Ideally, it should be placed in a clean, temperature-controlled workshop area, mounted securely on the floor or bench as required. Its compact and robust structure allows flexible placement even in limited spaces.

Q: When should the air blow cooling system be used?

A: The air blow cooling system should be engaged during continuous or high-speed tool setting to dissipate heat, maintain optimal operating temperature, and prolong the lifespan of internal components.

Q: How can users benefit from the digital display and connectivity features?

A: The digital display delivers clear, real-time measurement readings, while USB and RS232 connectivity options simplify data transfer and integration with other digital systems, streamlining the tool setting and monitoring processes.

Q: What maintenance is required for the tool presetter?

A: Routine manual lubrication and periodic surface cleaning are recommended. With its low-maintenance design and robust construction, the machine remains highly reliable over extended periods of use.
