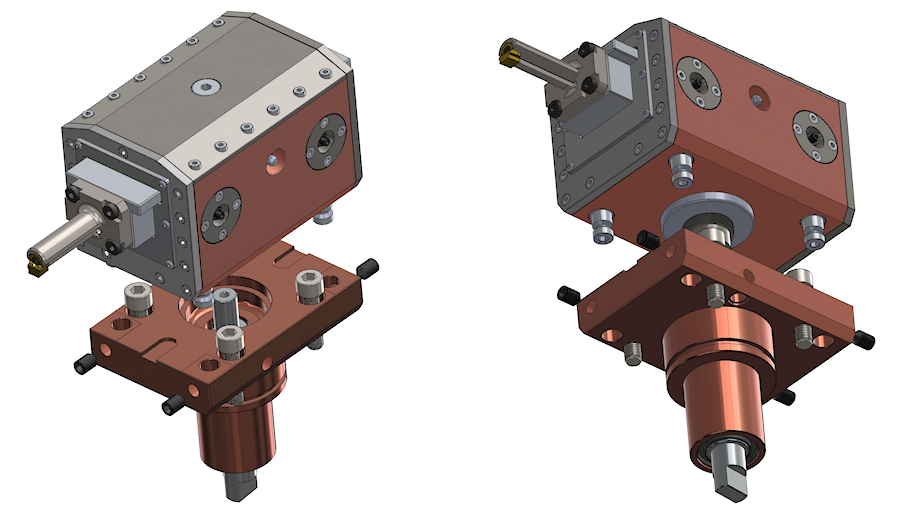

REV BROACH TOOL

REV BROACH TOOL Specification

Material
Tool steel body, hardened steel, and coated cutter inserts

Features
Easily interchangeable inserts, compact design, precision alignment, robust body

Coating
Yes (on cutter)

Length
Body length and cutter length vary, customizable

Machine Type
CNC lathe, automatic lathe, mill

Brooches Type
Rotary Broach

Operate Method
Automated (mounted to CNC spindle, turret, or toolholder)

Cutting Capacity
Suitable for keyways, splines, and precision slots

Cutter Type
Insert (Indexable)

Cutting Accuracy
High (precision broaching operations)

Tool Type
Rotary Broaching Unit

Drill Bits Types
Not applicable (Broaching Tool)

Shape
Rectangular/Box with cylindrical cutter attachment

Operation Type
Rotary broaching (external or internal operation)

Coating Type
Typically TiN/TiAlN or similar hard coatings for the cutter

Hardness
Used with hardened tool steel cutters

Cutting Speed
Optimized for CNC and automatic lathes, moderate to high feed

Cutting Force
Depends on machine and material, typically high

Diameter
Customizable, varies per application

Maximum Torque
Depends on machine specification

Processing Type
Internal and External Broaching

Customization
Available on request - body size, shaft interface, cutter type

Precision Alignment
Machined reference faces for accurate setup

Mounting Interface
Flanged base with pre-drilled mounting holes

Application
Production of keyways, hex, square, and other polygonal shapes in blind or through holes

Drive Method
Spindle-driven with internal rotary mechanism

Coolant Compatibility
Compatible with external and through-tool coolant

Weight
Varies per model; typically ranges from 2 to 7 kg

Maintenance
Simple insert changeover, low maintenance body

Axial Adjustment
Integrated axial adjustment collar

Body Finish
Anodized and hardened surfaces for durability

REV BROACH TOOL About

Order the REV BROACH TOOL-famed for its kingly precision and optimum robustness-designed to deliver instant savings in high-volume production environments where time is scarce. Engineered with a flanged base and pre-drilled holes for swift setup, this spindle-driven unit excels in producing keyways, hex, square, and other polygonal shapes in both blind and through holes. Benefit from easily interchangeable inserts and a low-maintenance body. Request custom mounting, shaft interfaces, or cutter types. Its anodized, hardened finish ensures longevity, while compatibility with through-tool and external coolant systems keeps performance optimized.

Engineered for Plant Performance and Versatile Commercial Utility

Ideal for plant operations, the REV BROACH TOOL serves commercial machining facilities, producing accurate keyways, splines, and various slots with kingly precision. Highly regarded for swift changeovers and minimal maintenance, it allows manufacturers to maintain optimum throughput with scarce machine downtime. Its adaptable, robust construction supports production across automotive, aerospace, and general engineering applications, establishing a famed reputation for reliability and versatility in internal and external broaching processes.

Sample Access, Certifications, and Market Support

REV BROACH TOOL offers sample availability for hands-on performance assessment before purchase. List price details are provided upon request, ensuring clear expectations. Certified for quality and safety, this broaching tool is ready for handover or drop-off throughout the main domestic market, supporting smooth procurement and onboarding. Partner with a leading exporter, supplier, and trader, and secure the assurance of robust aftersales guidance coupled with prompt logistical support.

FAQ's of REV BROACH TOOL:

Q: How is the REV BROACH TOOL installed on CNC machines?

A: The tool features a flanged base with pre-drilled mounting holes, allowing for precise alignment and straightforward attachment to CNC machine spindles, turrets, or toolholders.

Q: What shapes can be broached using this tool?

A: The REV BROACH TOOL is capable of producing keyways, hexagons, squares, splines, and other polygonal profiles in both blind and through holes.

Q: When should insert changeover be performed?

A: Insert changeover is recommended when signs of wear appear on the cutting edge or after completing the specified tool life, ensuring optimum cutting accuracy and finish.

Q: Where can certification and sample information be obtained?

A: Certification documents and sample requests can be obtained directly from the supplier, who will provide full details regarding list price, handover, and drop-off arrangements.

Q: What advantages does the axial adjustment collar provide?

A: The integrated axial adjustment collar allows for rapid and precise setting of broaching depth, improving operational accuracy and reducing setup times.

Q: How does coolant compatibility benefit the broaching process?

A: The REV BROACH TOOL supports both external and through-tool coolant supply, enhancing cooling and chip evacuation, which leads to longer tool life and superior workpiece quality.
