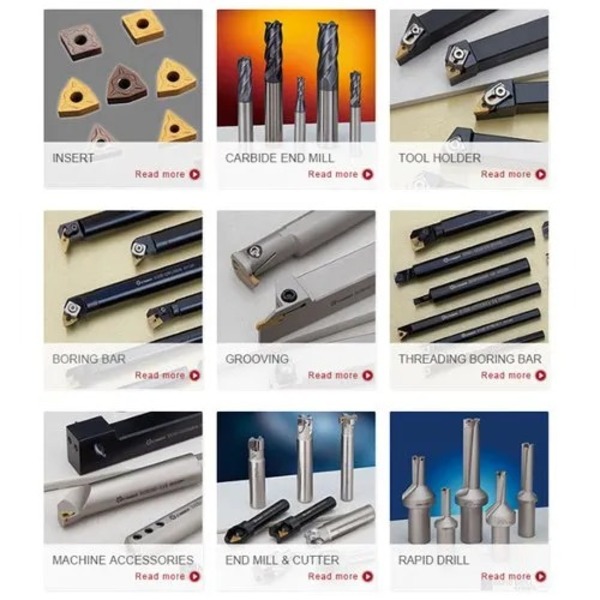

Echain Tools

Echain Tools Specification

Material
High Speed Steel (HSS)

Length
Standard and Extra Long

Coating Type
TiN Coated

Hardness
58-65 HRC

Cutter Type
End Mill Cutter

Operate Method
Hand & Machine Operated

Cutting Accuracy
High Precision

Cutting Speed
120-350 m/min

Machine Type
Drilling, Milling & Broaching Machines

Cutting Capacity
Versatile (Suitable for Steel, Cast Iron, Nonferrous Metals)

Brooches Type
Keyway Broach

Features
Rust Resistant, Sharp Cutting Edge, Durable

Tool Type
Industrial Cutting Tool

Drill Bits Types
Straight Shank Drill Bit

Coating
Titanium Nitride (TiN)

Shape
Round

Cutting Force
High

Operation Type
Manual & CNC

Diameter
0.5 mm to 20 mm

Maximum Torque
Up to 50 Nm

Processing Type
Forging

Color
Golden (Due to TiN Coating)

Shank Type
Cylindrical Shank

Usage
For Precision Machining

Lifespan
Long Service Life

Surface Finish
Bright Finish

Heat Treatment
Tempered for Extra Toughness

Application
Metalworking, Engineering, Construction

Echain Tools Trade Information

Minimum Order Quantity
100 Number

Delivery Time
7 Days

About Echain Tools

Model No	ECLNR/L-2020K12JET
Clamp	CN12-2
Clasp	C-6
Shim	SMC-432
Screw	CS80BJET
Screw of Shim	LW-4
Brand	Echain

Best choice for cooling solutions E-type clamping system turning tools with coolant. With 10 bar water pressure, focus on the cutting edge to cool down the temperature of the work piece. For turning, to use same tool body no need to change the whole tools, just change the screw from CS80 to CS80A/BJET series. For grooving or parting-off tools with coolant system are also available.

E-type holder with coolant:

Always position accurate while changing insert repeatedly.
No insert movement during high speed or heavily interrupted operation.
Change insert is simple and effective is simple and effective.
Excellent cooling results.
The coolant nozzle system increase inserts' life and stability.
Original E-type tool holders can replace our coolant noozle. It is more economical way than to purchase new tool holders with coolant holders.

Precision Engineering for Demanding Applications

Echain Tools are crafted from tempered high-speed steel and finished with a bright, golden TiN coating. With diameters ranging from 0.5 mm to 20 mm, these tools deliver sharp accuracy and durability. Designed for both handheld and machine use, they are a reliable partner for applications that require precision and strength, such as keyway broaching, drilling, and milling.

Versatile, Long-Lasting, and Rust Resistant

Engineered for longevity, Echain Tools feature rust-resistant properties and can endure high cutting speeds (120-350 m/min) and high torque (up to 50 Nm). These cutting tools serve a wide range of metallic materials-steel, cast iron, and nonferrous metals-making them suitable for various industrial sectors. Their versatility and robustness ensure optimal efficiency in every operation.

FAQ's of Echain Tools:

Q: How does the TiN coating on Echain Tools enhance their performance?

A: The Titanium Nitride (TiN) coating provides a golden finish that boosts surface hardness, significantly increases tool lifespan, and offers excellent resistance to rust and wear. This ensures high precision and consistent performance during both manual and CNC operations.

Q: What are the primary applications for these high-speed steel industrial cutting tools?

A: Echain Tools are designed for precision machining tasks in metalworking, engineering, and construction. They can be used for drilling, milling, and broaching on machines like CNC equipment, as well as for hand-operated applications.

Q: When should I choose standard length versus extra-long cutting tools?

A: Standard length tools are suitable for general-purpose machining, while extra-long tools should be used for deep hole drilling or when accessing hard-to-reach areas. The choice depends on your specific machining depth and application requirements.

Q: Where can Echain Tools be utilized for best results?

A: These tools deliver optimal results in workshops, manufacturing plants, and construction sites where high precision, hardness, and wear resistance are critical-for example, when creating keyways, holes, or precise cuts in various metals.

Q: What is the process for maintaining Echain Tools to maximize their service life?

A: To extend tool life, regularly clean and inspect for wear, ensure proper lubrication during operation, and use the recommended cutting speeds (120-350 m/min) and torque (up to 50 Nm). Store tools in a dry environment to prevent corrosion.

Q: Can these tools be used on a variety of metals, and what benefits does this provide?

A: Yes, Echain Tools are versatile and suitable for steel, cast iron, and nonferrous metals. This adaptability reduces the need for multiple tool sets, saving costs and simplifying workflow in diverse machining environments.
