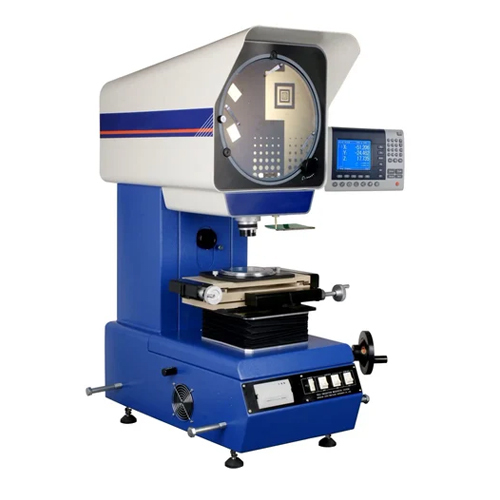

Manual Optical Profile Projector

Manual Optical Profile Projector Specification

Accuracy
0.001 mm

Working Area
300 mm x 200 mm

Portable
Yes

Brightness
High-intensity

Resolution
0.001 mm

Lamp
Halogen Lamp

Lens
High-precision Objective Lens

Pictures Size
Standard

Power
150W

Voltage
220 Volt (v)

Manual Optical Profile Projector Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA)

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

Main Domestic Market
All India

About Manual Optical Profile Projector

Understanding the optical profile projector This instrument allows the details of a mechanical component, such as edges, curves and angles, to be examined with an accuracy of up to microns. Magnification capacity varies, but is usually between 10x and 100x, allowing detailed analysis of the parts characteristics.

Exceptional Measurement Precision

Engineered with a high-precision objective lens and a protractor display with cross lines, this projector delivers measurement resolution down to 0.001 mm and angle readings with 1-minute graduations. Its manual XY stage, micrometer adjustment, and fine focus travel ensure every inspection achieves exceptional clarity and accuracy.

Durable, Portable Construction

This optical projector boasts a rigid cast iron base, anti-corrosive powder coating, and a stable structure that accommodates up to 5 kg loads. Designed for portability and weighing approximately 85 kg, it efficiently supports use in diverse laboratory and workshop environments. ISO-certified manufacturing ensures consistent quality.

Efficient Operation and User Control

Manual control is facilitated through XY micrometer adjustments, permitting smooth and reliable sample positioning. The halogen lamp guarantees high-intensity brightness for clear imaging, while standard voltage requirements and a spacious working area make it simple to integrate into existing procedures without specialized setups.

FAQs of Manual Optical Profile Projector:

Q: How do I operate the manual XY movement on the projector?

A: You can control the XY movement of the stage using the provided micrometer adjustment knobs. This manual process enables precise positioning of your sample for accurate measurements, allowing smooth sample alignment along both axes.

Q: What are the benefits of using a profile projector with 0.001 mm resolution?

A: The ultra-fine resolution of 0.001 mm ensures highly accurate measurements, allowing users to inspect minute features and tolerances. This precision is crucial in quality control, validation, and inspection tasks in laboratories or workshops.

Q: Where is this optical profile projector typically used?

A: This projector is designed for laboratories and workshops where detailed profile inspection and precision measurement are necessary. Its robust, portable build and ISO-certified manufacturing support versatile environments, including research, manufacturing, and technical training facilities.

Q: What is the measurement capacity and working area of the projector?

A: The instrument offers an XY travel range of 200 mm x 100 mm on a table measuring 350 mm x 180 mm. The screen provides a diameter of 300 mm, and the working area is 300 mm x 200 mm, which is suitable for a wide variety of specimens and parts.

Q: How does the high-intensity halogen lamp enhance usability?

A: The 150W halogen lamp delivers strong, consistent brightness and illumination, improving image clarity and making profiles and edges more discernible during measurement and inspection tasks.

Q: Is the projector compliant with industrial standards?

A: Yes, the projector is manufactured according to ISO-certified standards, ensuring it meets stringent quality and performance benchmarks required for precision measurement instruments in professional environments.
